1969-72 K5 Blazer Aluminum Gas Tank for TCI 4X4 Chassis - 22 Gallons
Weighs 20.000lbs.
Custom 22-Gallon Fuel Tank for TCI 4x4 Chassis

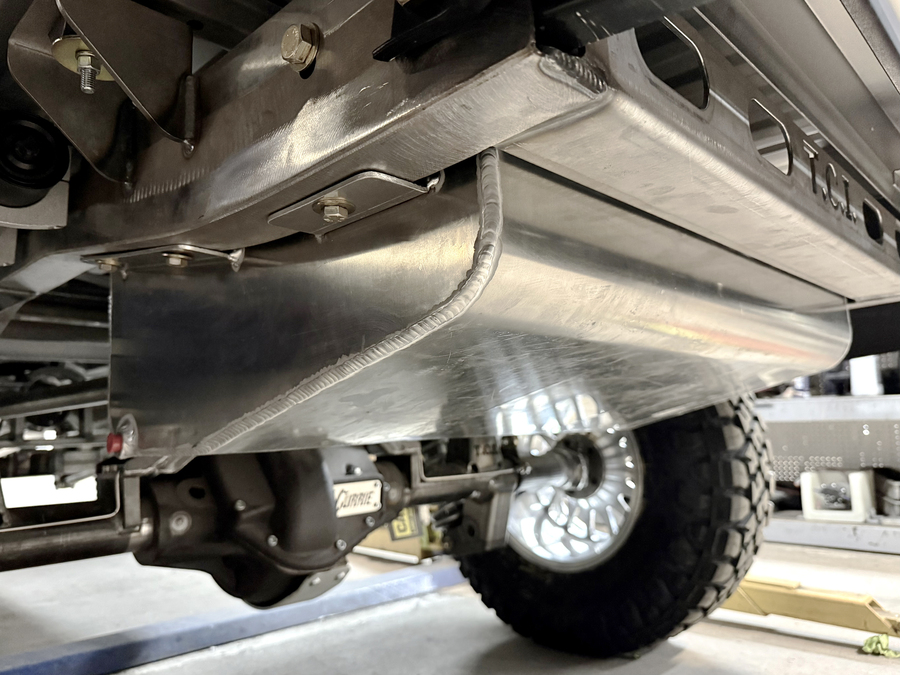

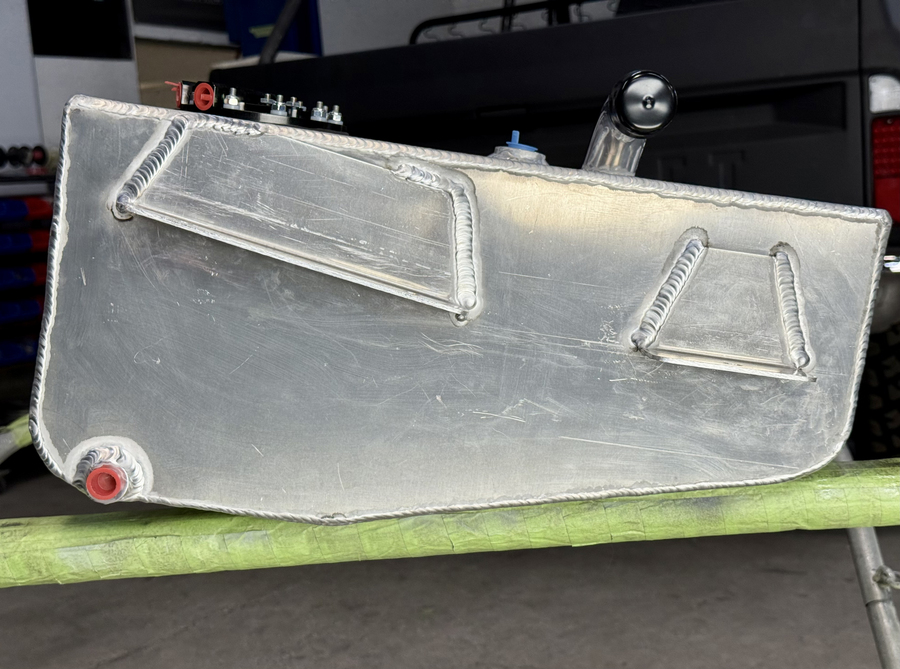

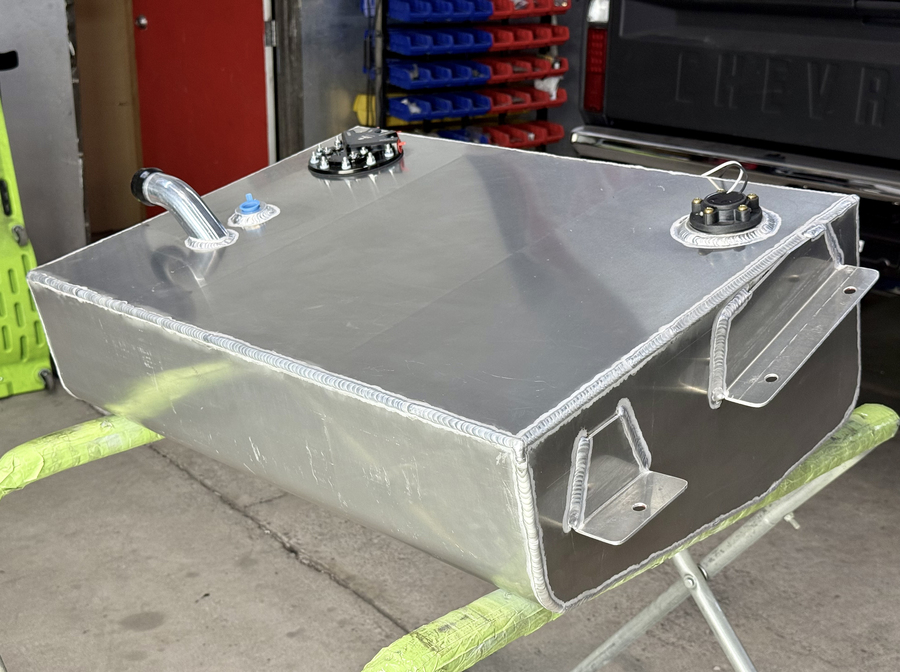

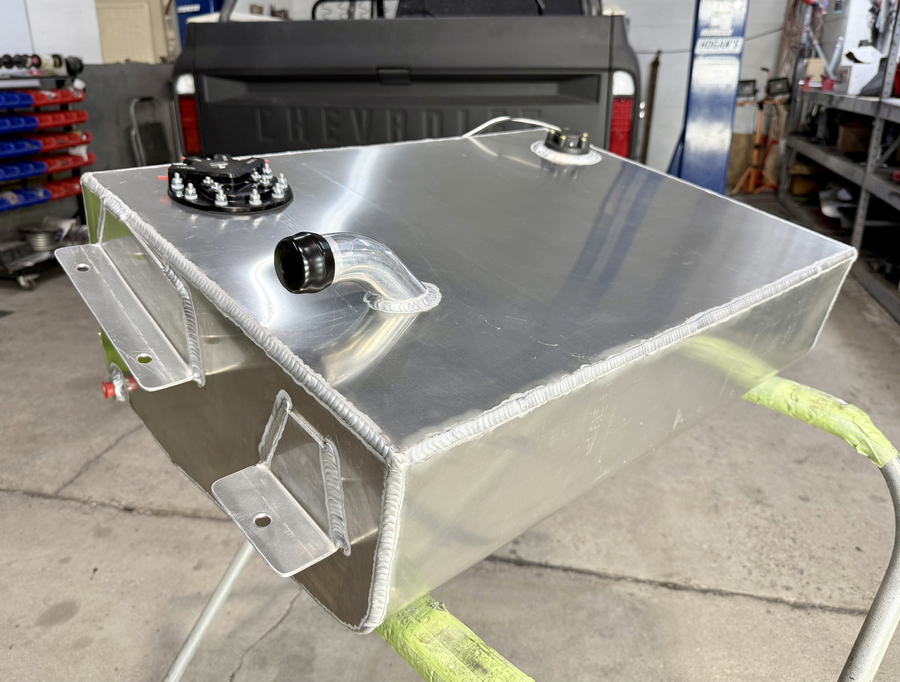

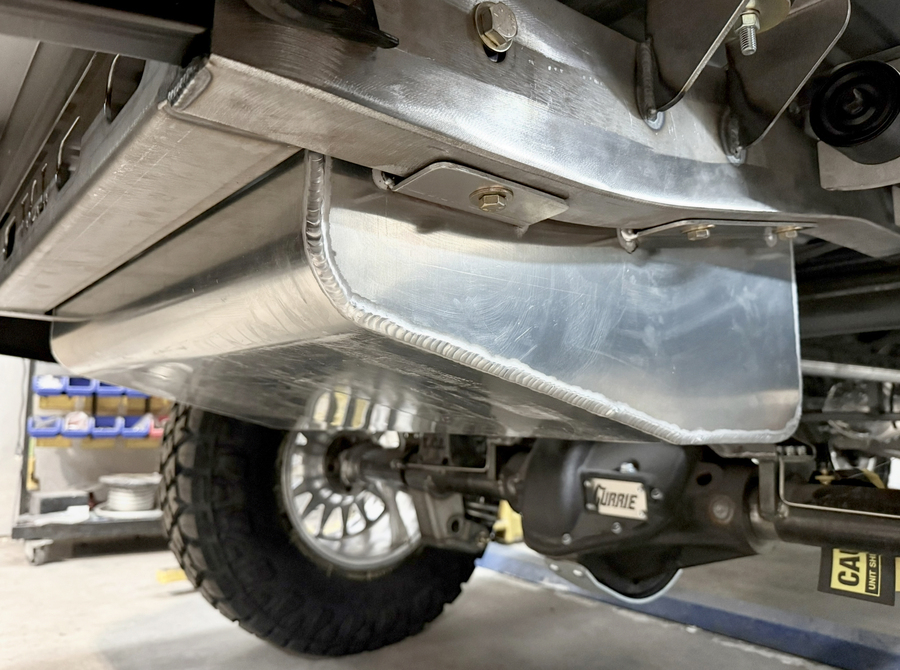

Premier's custom bed-mount fuel tank is engineered to fit the TCI (Total Cost Involved) 4x4 chassis for 1969-72 K5 Blazers. Built in-house with precision, this 22-gallon tank features internal baffling and pressure-tested construction for long-term performance.
Optional Holley billet electric in-tank pumps are available and can be configured per customer request. Each unit includes a floatless style sending unit (0-90 ohms) for reliable fuel level monitoring.
Features:
- 22-gallon capacity
- 1-1/2 inch side fill tube
- 1/2 inch NPT female vent port
- 3/8 inch NPT drain at the bottom
- Internal baffling and pressure-tested construction
- Floatless sending unit (0-90 ohms)
- 5/16 inch nut-serts and stainless hardware for mounting
Fabricated in-house by Premier. Available now.
This part fits most 1969 1970 1971 1972; exceptions may apply. Please read the complete description to see if this part fits your specific vehicle and application.
