Weighs 7.000lbs.

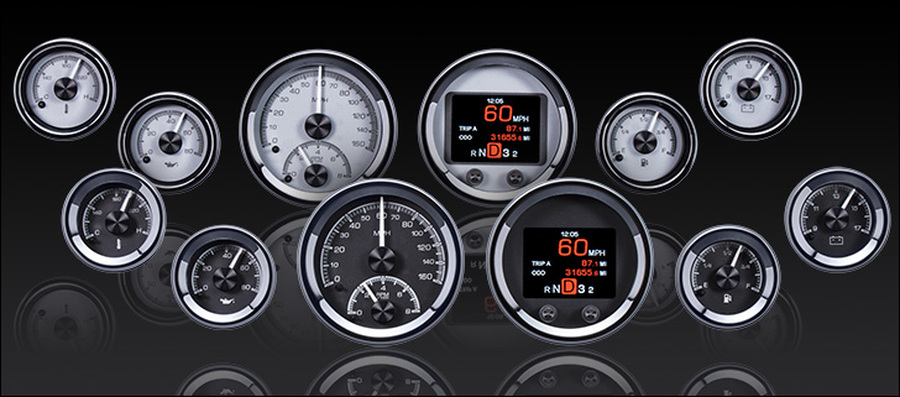

HDX technology in a timeless arrangement! Whether you have an existing panel that needs to be updated, or you’re scratch building your dream, this six-gauge set offers the utmost in flexibility! The speedometer/tach and TFT message center each drop into 3 3/8” holes (3.55" OD), while their matching satellites spec out at 2 1/16” (2.225" OD); the HDX-2060 requires 2” of depth behind your panel. Machined mounting cups secure the gauges to your panel, attached with supplied thumb nuts. That full-color TFT message center can display as much information as you like!
Available with your choice of black or silver alloy gauge-face styling, each HDX system allows the user to select independent illumination colors for the gauge readings and needles, as well as the message centers. Calibration and personal settings are manipulated with the built-in, capacitive-touch buttons, or the available Bluetooth app for Apple and Android devices. Each needle hub is black nickel plated spun-aluminum to match the buttons. All HDX instrument systems feature dead-faced indicators (turn signals, high beam, check engine, cruise control, parking brake, plus two user-definable), and a red, settable warning light for each gauge. With our central control box, installation is greatly simplified with vehicle-harness sourced signals and supplied, solid state sending units connecting cleanly to their respective terminal. Click the tabs below for a more in-depth look at the HDX series!
This part fits most; exceptions may apply. Please read the complete description to see if this part fits your specific vehicle and application.
