Discontinued Item: This item is discontinued. Please CALL to see if there is a replacement or an alternative.
(Mouse over any image to view)

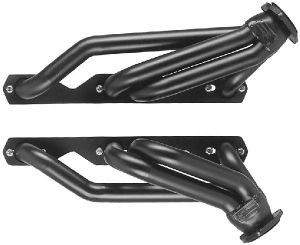

Sanderson Small Block Chevrolet Headers for 2WD S-10 and Blazer V8 Conversions - Ceramic Coated Photo Main

The CS12 is a small block Chevy conversion header for V8 engine swaps in two wheel drive (2WD) Chevrolet S-10 truck and Blazer (incluidng GMC S-15) applications. The CS12 is a very compact header design that fits cleanly between the engine and frame rail. This is NOT a fenderwell exit header! The CS12 features a 1-5/8" primary tube and 3" collector for applications making more power than the standard CS11 header can handle. There is also a 1-3/4" version available, part #CS13. The CS12 header works with virtually all engine swap kits. For LS1 engine swaps, please use the #CSLS1 header set. WARNING: The vehicle's steering shaft will run between the engine block and header on this application. The use of solid motor mounts, engine plates, or the installation of a torque limiter is strongly recommended to prevent the engine from shifting would may cause the steering to bind. Comes with all hardware necessary for installation. Features a 16-gauge primary and collector tube thickness with a 3/8" thick flange and a patented flange design requires NO gaskets. Tightest fitting header available anywhere! Made in the USA. Includes header bolt set. Our Aluminized Ceramic Coating is available and RECOMMENDED on all Sanderson Headers. We apply a multi-layer inside and outside silver ceramic coating in-house to meet our high standards of quality, and polish the coated header to a high luster. This coating provides aerospace and military technology to your vehicle to control the heat in your engine bay, improve cylinder scavenging of exhaust gases, and increase the longevity of your header investment. Copper Collector Gaskets are recommended for all Sanderson headers. Sanderson Headers do not include collector bolts due to our customers' wide range of preference. We do offer a collector bolt set that features Grade 8 Bolts with Locking Nuts. This header offers 1 " primary tubes, which is good for about 350HP on a casually used engine application. For LS1 engine swaps, order #CSLS1. WARNING: The vehicle's steering shaft will run between the engine block and header on this application. The use of solid motor mounts, engine plates, or the installation of a torque limiter is strongly recommended to prevent the engine from shifting would may cause the steering to bind This header offers 1-5/8" primary tubes and a 3" collector, which is good for about 400HP on a casually used engine application. Also available in a 1 " primary tube diameter version, #CS13; and for standard applications up to about 350HP, order #CS11 For LS1 engine swaps, order #CSLS1 WARNING: The vehicle's steering shaft will run between the engine block and header on this application. The use of solid motor mounts, engine plates, or the installation of a torque limiter is strongly recommended to prevent the engine from shifting would may cause the steering to bind. The Patented Leak-Free Design that Sanderson Headers offer you is the only leak-free flange design on the market ... Do Not Attempt To Use Flange Gaskets! The raised flange on the Sanderson Headers will buckle the gasket during tightening and actually cause a leak! Sanderson Headers are NOT emissions legal on pollution-controlled motor vehicles. It is the purchaser's responsibility to verify local regulations for compliance. Wrapping your Sanderson Headers with ANY thermal tape voids your header warranty. The best thermal protection for your headers is our Aluminized Ceramic Coating that is available for every Sanderson Header. Limited 5-year warranty.

This part fits most Chevy Cars and Trucks.; exceptions may apply. Please read the complete description to see if this part fits your specific vehicle and application.

Discontinued Item
